Specifications:
Output Frequency: 13.75 to 14.50 GHz (typical: 14.00 to 14.50 GHz)
Input Frequency: 950 to 1700 MHz (typical: 950 to 1450 MHz)
Output Power (P1dB): 39 dBm
Local Oscillator (L.O.) Frequency: 12.80 GHz (typical: 13.05 GHz)
Input VSWR: 2.0: 1
Output VSWR: 2.1: 1
Phase Noise (SSB):
70 dBc/Hz at 1 kHz
80 dBc/Hz at 10 kHz
90 dBc/Hz at 100 kHz
External Reference Signal Frequency: 10 MHz
External Reference Level: -5 to +5 dBm
External Reference Phase Noise:
135 dBc/Hz at 100 Hz
140 dBc/Hz at 1 kHz
150 dBc/Hz at 10 Hz
Gain:** 56 dB min, 66 dB max
Gain Stability over Temperature: ±2.25 dB (any constant frequency)
Gain Stability In-Band (Constant Temp):** ±1.0 dB (in any 54 MHz band) / ±3.0 dB (over the full 750 MHz band)
Input Connector: F-Type

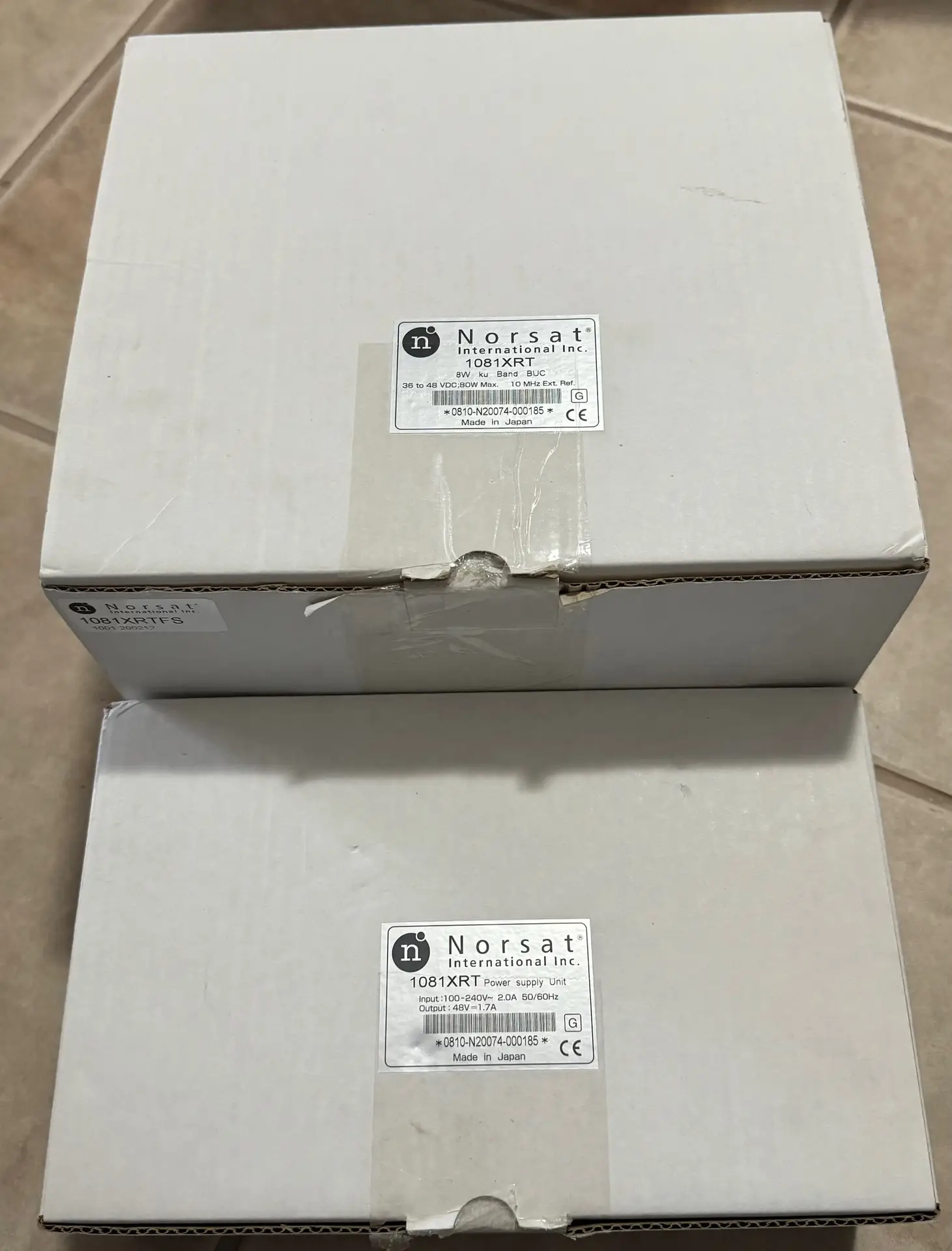

Condition: Never used; box opened only for photos.

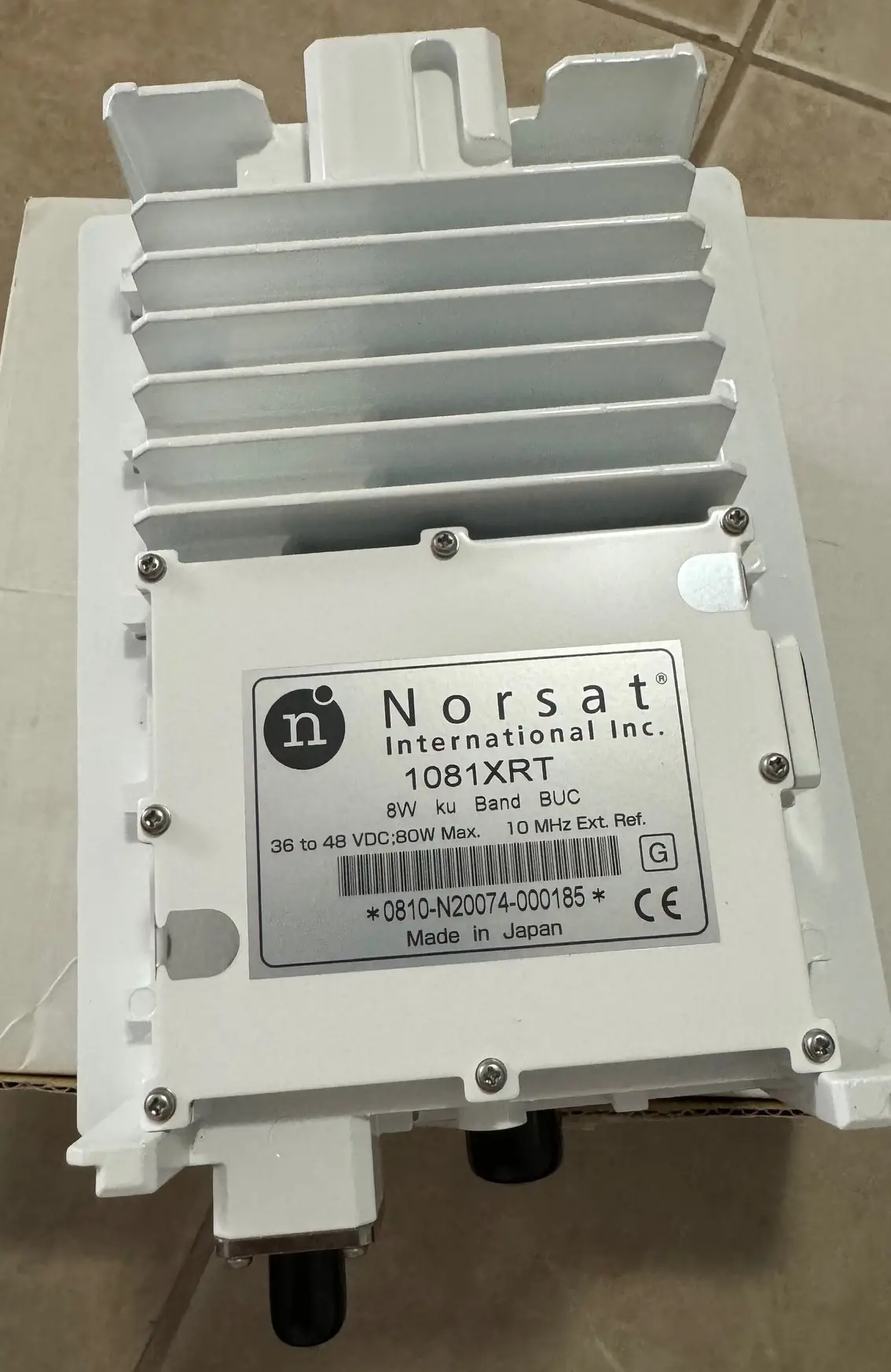

Norsat 1081 XRT, 8W Ku-Band BUC (Switchable Between Frequency)
Original price was: $4,429.00.$2,450.00Current price is: $2,450.00.
+ Free Shipping*Shipping is FREE for all orders to the 48 contiguous states.
Norsat 1081 XRT is a high-quality Ku-Band BUC perfect for your satellite needs.
This unit is designed with a frequency band of KU-Band and is switchable between Standard and Extended frequencies.

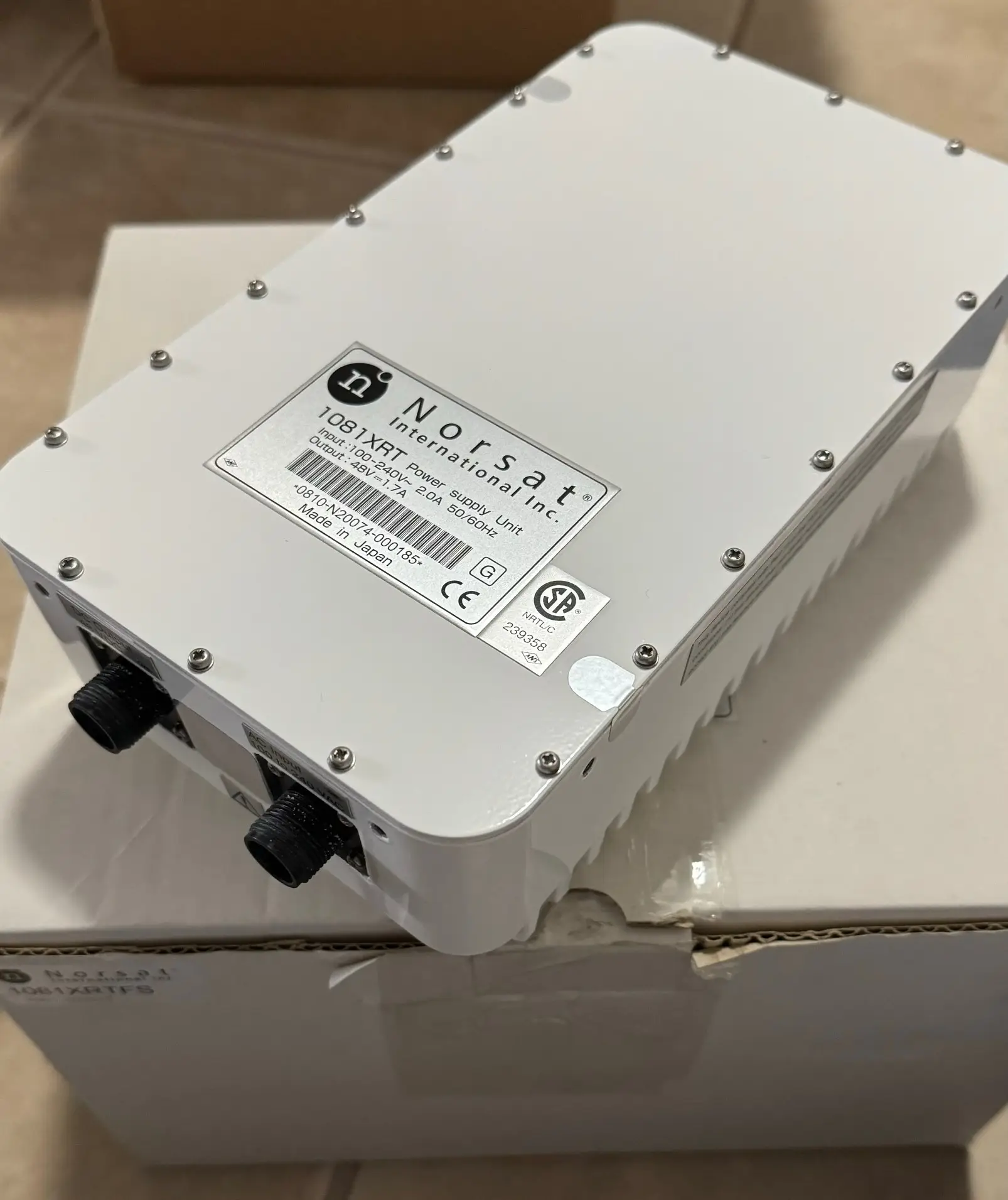

It has a maximum output power of 39 dBm. It includes Universal Outdoor AC Power Supply, Universal BUC Cable, and AC Power Supply cord connectors, making it a convenient all-in-one solution.
In addition, the Norsat 1081 XRT has a compact design and is manufactured in Japan.
It has a unit quantity of 1 and supports RF frequencies of 13.75 – 14.50 GHz or 14.0 to 14.50 GHz.
The IF frequency ranges from 950 to 1700 MHz or 950 to 1450 MHz.
This Ku-Band BUC is perfect for those who are looking for a reliable and high-performance BUC – Block Up Converter.
Click Here for the Norsat 1081 Spec Sheet
Availability: 1 in stock
